משדר לחץ dTRANS p20

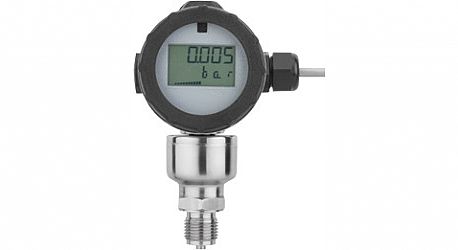

 The JUMO dTRANS p20 pressure transmitter with HART® interface combines maximum precision with simple operation

It is used to measure the relative pressure and absolute pressure of gases, vapors, and liquids.

The integrated LCD display shows the measured values and device data.

The version with explosion protection "Ex ia (intrinsically safe)" allows the pressure transmitter to be installed up to zone 0.

The case and sensors are manufactured from high-grade stainless steel. Various flush-mounted process connections are available

for use to meet requirements for hygiene

and also include the EHEDG certified PEKA connection system (see type 409711).

A special high-temperature version is available for measurement tasks involving hot media and cables, which can withstand temperatures of up to 200 °C

Pressure separators can also be connected for particular process technology applications (see types 409772 to 409784)

The transmitter is programmable. As a result it is readily adaptable to a variety of different measurement tasks.

A convenient setup program is available as an accessory to enable operation via the interfaces

A rotary knob makes manual operation on site very convenient and quick.

For version with explosion protection "Ex d" see type 403026

For version for differential pressure, see type 403022

Further technical information is available in the download area
