חיישן ניטור גזים - EE820

 משדר: CO2 דגם: EE 820

מיועד לחממות

רגש בטכנולוגיית אינפרא  אדום NDIR

כיול עצמי אוטומטי כל 12 שעות. המבטיח דיוק במדידה לאורך זמן.

פיצוי ב 3 נקודות טמפרטורה

תחום:  5000ppm או 0-2000  או 0-10000

יציאה: 0-5  או 0-10 v או mA 4-20

 New transmitters for reliable CO2 measurements

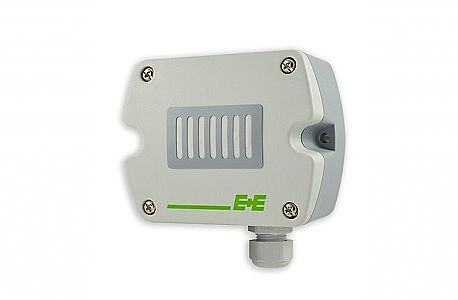

The EE820 CO2 transmitter is designed for particularly demanding applications.

The robust, functional housing with special integrated filter allows

for use of the EE820 in polluted environments such as agriculture, stables, incubators, or greenhouses.

The EE850 CO2 and temperature transmitter for duct mounting

is ideal for applications in building management or process control. Additionally,

the EE850 offers an optional passive temperature output

Both transmitters feature the dual wavelength NDIR procedure, which is highly insensitive to pollution. The measured values are available as either analog current or voltage outputs. A multi-point CO2 and temperature factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire working temperature range.

More benefits:

Autocalibration

Outstanding long-term stability

Temperature compensation

Easy installation
